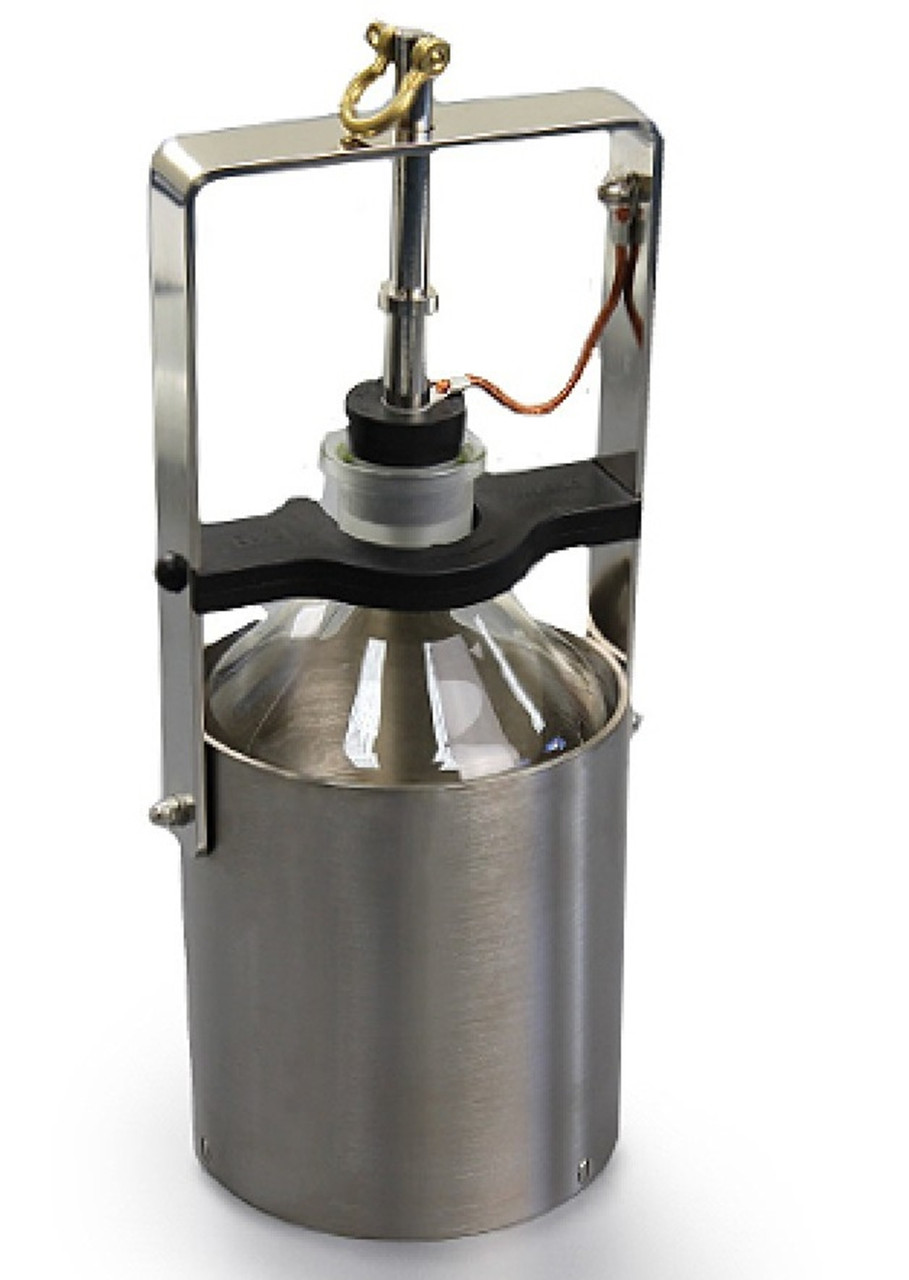

SUB SAMPLER NICKEL PLATED BRASS & GLASS 1000 ml - EX RATED
SPECIFIACTIONS
Operation
1. Lower Sub Sampler to the
required depth.
2. Pull up sharply on the lowering
cable to pull the stopper out of
the bottle.
3. Wait a few seconds for the liquid
to flow into the bottle
4. Pull up the Sub Sampler and
retrieve the sample
With Removable Glass Bottle
An ideal liquid sampler for most common liquids including water, oils,
sludge etc.
Manufactured from spark suppressant brass
Bottle can be easily removed using patented click system
125mm diameter - 300mm high - 3 kg weight
Hand reels and cables are essential accessories when using sub
samplers (Bomb Samplers). The standard heavy duty hand reel is
suitable for most situations. However if you are using the sampler
in an Ex rated environment use the Hand Reel Ex with the copper
cables.
Do not use stainless steel chain for use in ATEX environments.
* Make sure the sampler is properly earthed (grounded) use the Ex Hand Reel (5070D-05) and Copper cable (5070C)
