SIEVES 3.5 INCH DIAM SS WIRE MESH ACRYLIC RIMS
SALES (804) 318-3686

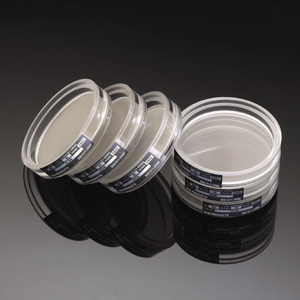

ACRYLIC SIEVES FOR SONIC SIFTER
Using specially designed 3.5 inch (75mm) diameter sieves, and a patented oscillating air column,
the L3P achieves dry, fine particle separations down to 3 microns, with a tolerance of +/- 2 microns.
(ASTM E 161) Tighter tolerances are attainable with ultra series electro-formed sieves or custom geometry apertures.
Because the sieves are only three inches in diameter, a 10 gram maximum sample size is recommended.
(For very small particle separations, 2 grams or a maximum 4cc by volume sample is recommended)
Larger particles should also be separated out first.
SIEVES 3.5 INCH DIAM SS WIRE MESH ACRYLIC RIMS
QAQC Lab Analytical Instrumentation offers a selection of high-performance 3.5 inch (75mm) acrylic sieves, specifically designed for use with our ultrasonic Sonic Sifter systems. These sieves are engineered to achieve dry, fine particle separations down to 3 microns, maintaining a precision tolerance of +/- 2 microns in accordance with ASTM E 161 standards.
Advanced Sieve Technology
Utilizing a patented oscillating air column mechanism, our acrylic sieves effectively enhance the separation process for various applications in pharmaceutical, environmental, and agricultural testing. For situations requiring even tighter tolerances, we offer ultra series electro-formed sieves or customized aperture geometries tailored to meet specific testing requirements.
Key Specifications
- Diameter: 3.5 inches
- Maximum sample size: 10 grams (recommended 2 grams for very fine separations)
- Separation down to 3 microns
- Tolerance: +/- 2 microns
Product Offerings
Explore our extensive range of sieves with various mesh sizes, created to suit a range of applications. Some of the products available in this category include:

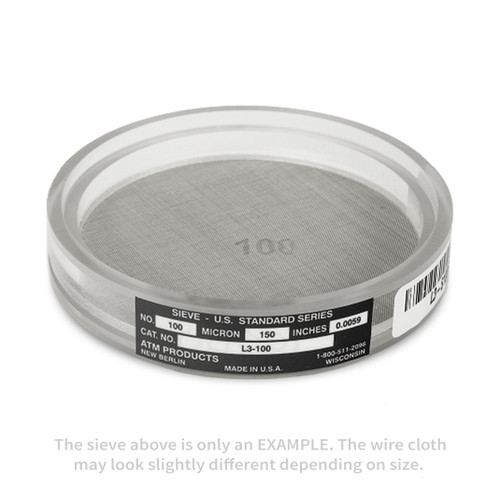

- Sieve 3.5 Inch L3P Acrylic Sieve US STD .020 mm
- Sieve 3.5 Inch L3P Acrylic Sieve US STD .025 mm
- Sieve 3.5 Inch L3P Acrylic Sieve US STD .032 mm
- Sieve 3.5 Inch L3P Acrylic Sieve US STD .075 mm
- Sieve 3.5 Inch L3P Acrylic Sieve US STD .150 mm
For more information, download our product brochure here or request a quick quote here.
