SIEVECAL

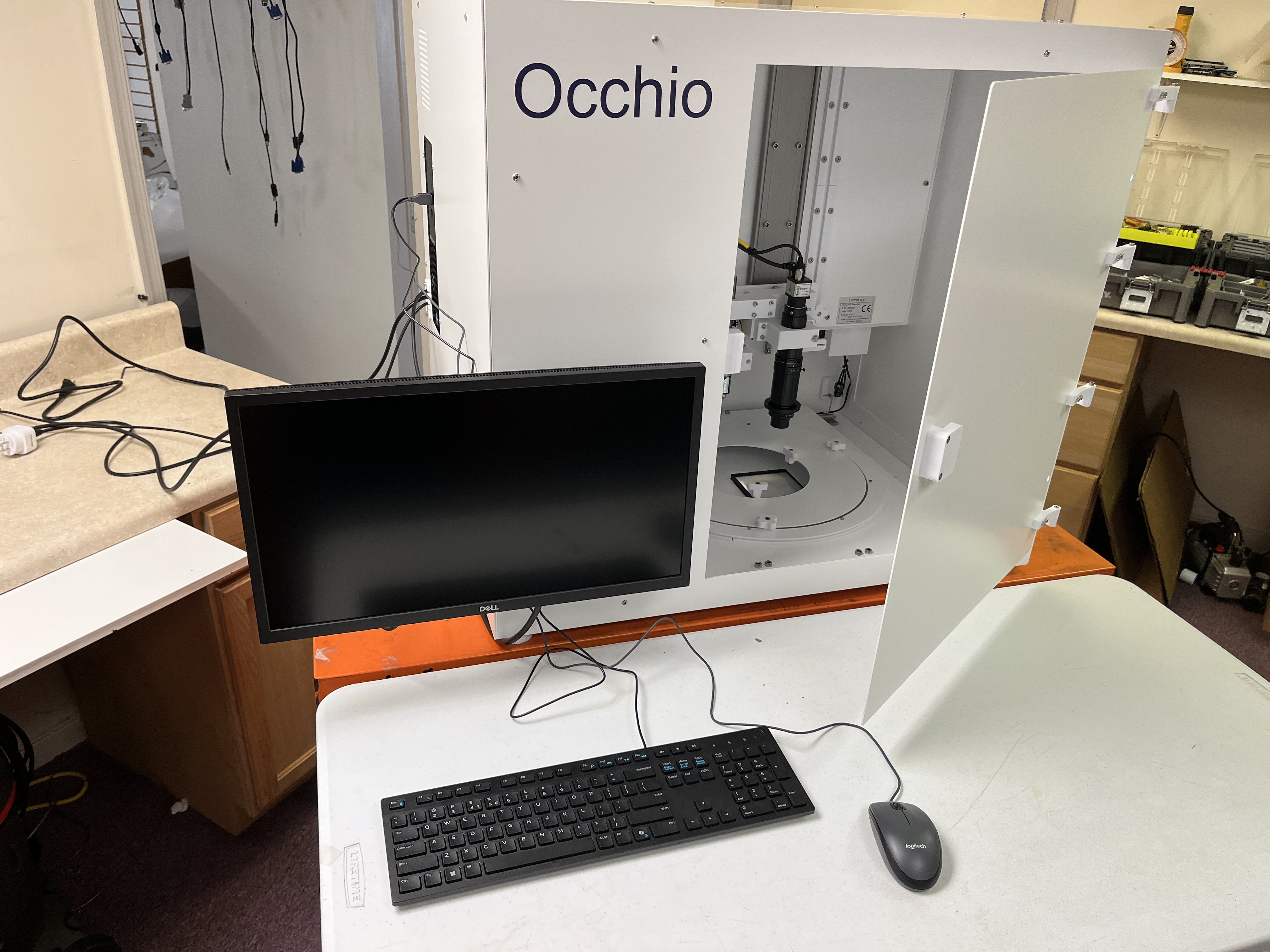

Occhio programmable automated sieve calibration and certification system.
Compatible with sieve diameters from 3 inch to 12 inch (standard sieve support included)
Measures sieve apertures between .038 mm and 12.5 mm. Provides NIST Traceable Method
for measuring sieve apertures and wire diameters, using ASTM E-11 / ISO 3310 Criteria.
Programmable SOPS for each sieve, including focus settings, and ASTM E-11 calibration grade.
Time required per sieve 2 minutes for Inspection Grade.
OPERATING INSTRUCTION
Captures images of failed apertures. Images are inspected with AI, and removed from the final report,
after editing for clogged apertures. Ultrasonic cleaner recommended for removing debris, prior to analysis.
Width x Deep x Height 83 x 60 x 87 cm
Weight 57 kg
Humidity 35% - 80% non-condensing
Power Supply 100-220 Vac 50-60Hz
(external power supply module included with the packing)
Processor Intel Core i7 5820K@3.3GHz
Ram 32GB DDR4 2.133MHz
Hard Disk 1 TB + SSD 256GB
Display 1920 x 1080
Mouse, keyboard usb, US Keyboard
Operating system Windows 10pro 64 bits (or 10 Pro 64 bits)
Optics and imaging device
Description Standard camera type 12 Megapixels (4242 x 2830 pixels)
Camera resolution
(Lens position F)
Including x0.3 front lens
Min 2.42μm/pixel @ x1.28 magnification
Max 14.76μm/pixel @x0.21 magnification
Without x0.3 front lens
Min 0.69μm/pixel @ x4.5 magnification
Max 4.13μm/pixel @x0.75 magnification Image size
(Lens position F) Including x0.3 front lens 10.3 x 6.8 mm² @ x1.28 magnification 62.6 x 41.8 mm² @x0.21 magnification
Without x0.3 front lens 2.9 x 1.9 mm² @ x4.5 magnification 17.5 x 11.7 mm² @x0.75 magnification
Lens type: Telecentric zoom
Light source Type. 450 nm blue light
Sieve opening from 38 um to 12.5 mm
Sieve size supported 3, 6 and 12 inch, sieve adaptor included
Sieve opening computing X Opening, Y Opening
X Wire Thickness, Y Wire Thickness
Dedicated acquisition and reporting software compliant with ASTM E11 standard
Fully automated flat scanning table (sieve rotation and translation)
Standard analysis duration approximately 2 minutes
Easy focusing
Non Contact inspection measure
Detection and counting of clogged opening (relative proportion)
Packing Dimension (W x L x H) 94 x 71 x 110 cm
Gross weight 111 Kg
