  • Specifications Range 20 um to 125 mm Drive / sieving motion electromagnetic 3D Max. batch / feed capacity 20 kg Max. number of sieves 7 full height (450 mm diameter sieves) Amplitude 0 - 2 mm digital setting in 10 steps Speed 3,000 min-1 at 50 Hz Time display digital, 00:10 - 99:50 min (external unit) Suitable for dry sieving yes Suitable for wet sieving yes Sieve diameter 250 / 300 / 315 / 350 / 400 / 450 mm / 12" / 18" Max. height of sieve stack up to 830 mm Clamping devices turn and twist clamping system (included) Model floor Protection code IP 54 Electrical supply different voltages available Power connection 1- Phase W x H x D 606 x 230 mm Net weight ~ 140 kg Standards CE

    • ENDECOTTS T450 18" SIEVE SHAKER 110 V 60HZ OR 230 V 50 HZ

    ENDECOTTS

    $7,621.00
    (No reviews yet) Write a Review
    SKU:
    600 T450
    Weight:
    374.00 LBS
    Width:
    27.00 (in)
    Height:
    11.00 (in)
    Depth:
    27.00 (in)
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    SALES (804) 318-3686

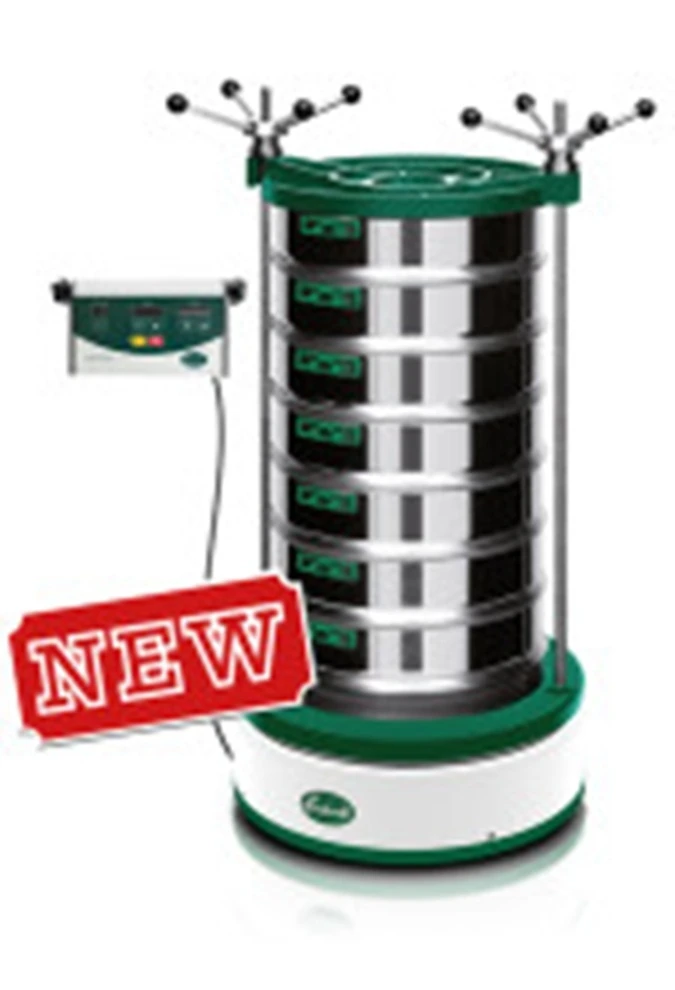

    Sieve Shaker TITAN 450

    The name says it all: The new Titan 450 is Endecotts' most powerful sieve shaker!

    It is built for large sieve diameters and can take up to 7 x 450 mm test sieves!

    OPERATING INSTRUCTIONS



    The Endecotts Titan 450 is a vibrating shaker that is used to carry out sieve tests in conjunction
    with sieve stacks for particle sizing of various material samples.
    It is based on an electromagnetic drive, with special carbon fibre springs that are set at a calculated
    angle to provide a horizontal twist,     as well as a vertical movement to carry out efficient sieve tests.

    The Titan 450 has a remote control unit that houses a digital controller to vary the vibration, process time and intermittent settings.



    Application Examples

    cement clinker, construction materials, minerals

    Advantages

    • Electromagnetic drive for quiet and virtually maintenance free operation
    • Easily set to maximum efficiency
    • Digital controls for easy and reliable operation via external interface
    • Economical
    • No mechanical moving parts
    • Suitable for wet or dry sieving
