Product Description
SALES (804) 318-3686

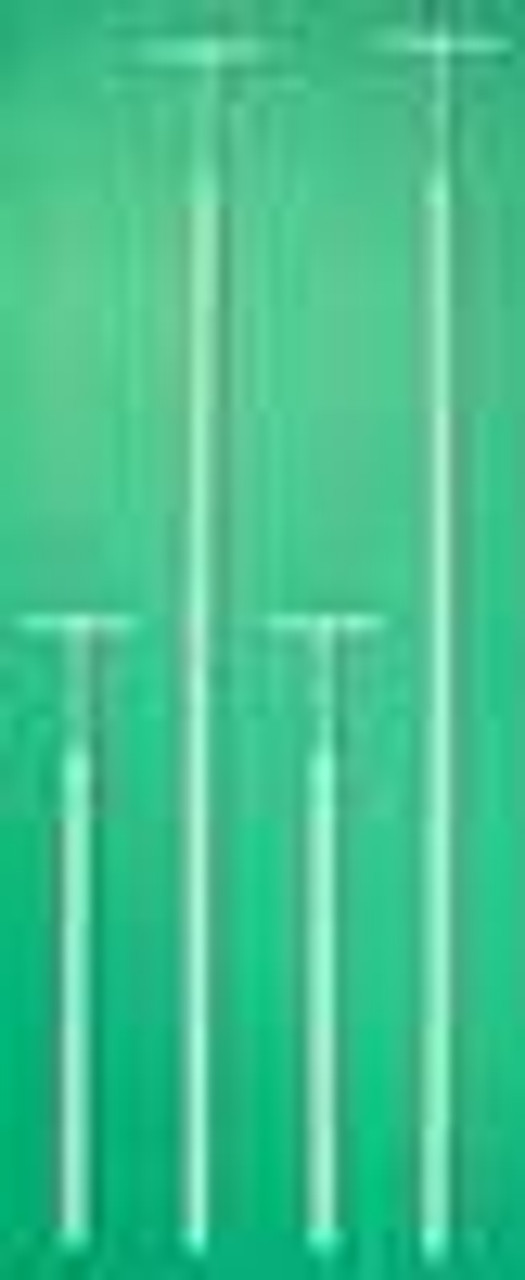

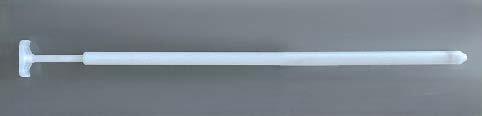

DISPOSABLE HDPE LIQUID SAMPLERS
Length 500 mm Volume 100 ml BOX 20
Material of Construction:
Tip HDPE (virgin, FDA approved – CFR 177.1520)
Outer Tube HDPE (virgin, FDA approved – CFR 177.1520)
Inner Rod HDPE (virgin, FDA approved – CFR 177.1520)
Clutch HDPE (virgin, FDA approved – CFR 177.1520)
Piston Housing HDPE (virgin, FDA approved – CFR 177.1520)
Piston Seal Silicone Rubber (virgin, FDA approved – CFR 177.2600)
Handle HDPE (virgin, FDA approved – CFR 177.1520)
Method of Construction: Ultrasonic welding
Nominal Length
Fully closed: 523mm
Fully extended: 881mm
Diameter of Outer Tube: 21mm
Diameter of hole in tip: 1.5mm
Nominal Weight of Sampler: 83g
Assembly & Packing Environment: Class 100,000 Medical Cleanroom
Individually Bagged? Yes (heat sealed PE bag)
Method of Sterilization: N/A
Number of Samplers per Box: 20
Recommended Storage Conditions: Dry and ambient temperature
